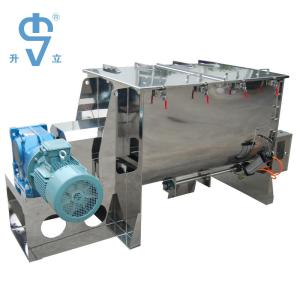

Stainless Steel Horizontal 1000L Ribbon Blender For Flour Powder
General Introduction: The outer ribbon push the material from the two ends to the centre, inner ribbon push the material from center to the two ends.Thus to achieve material convention.The discharging port is set in the bottom centre, with the help of the outer ribbon,the material can be discharged completely, and no dead zone.
LHY horizontal ribbon mixer is widely used in chemical, pharmaceuticals, food, and construction line.
It can be used to mix powder with powder, powder with liquid, and powder with granule.
Under the driven of motor, the double ribbon agitator mix the material quickly.
Data sheet
| specification | | LHY-0.3 | LHY-0.5 | LHY-1 | LHY-2 | LHY-3 | LHY-4 | LHY-5 | LHY-6 | LHY-8 | LHY-10 | LHY-15 | LHY-20 | LHY-30 |
| wrking capacity(m³) | | 0.18 | 0.3 | 0.6 | 1.2 | 1.8 | 2.4 | 3 | 3.6 | 4.8 | 6 | 9 | 12 | 18 |
| working capacity(kg) | | 200 | 300 | 600 | 1200 | 1800 | 2500 | 3000 | 3600 | 4800 | 6000 | 9000 | 12000 | 15000 |
| speed (r/min) | | 62 | 62 | 49 | 33 | 33 | 27 | 27 | 27 | 22 | 14 | 14 | 14 | 12 |
| power(kw) | | 5.5 | 7.5 | 11 | 15 | 18.5 | 22 | 30 | 37 | 45 | 55 | 75 | 90 | 110 |
| weight | | 600 | 900 | 1200 | 2000 | 2500 | 3500 | 4000 | 4500 | 5000 | 6000 | 7500 | 10500 | 13000 |
| Length | | 2280 | 2670 | 3140 | 3860 | 4460 | 4950 | 5280 | 5530 | 5100 | 5610 | 5820 | 6300 | 7000 |
| width | | 680 | 780 | 980 | 1200 | 1300 | 1400 | 1550 | 1560 | 1720 | 1750 | 2000 | 2350 | 2600 |
| Height | | 880 | 1240 | 1400 | 1650 | 1700 | 2000 | 2100 | 2200 | 2500 | 2650 | 2900 | 3160 | 3350 |
Company Overview
Shanghai Shengli specializes in mixing equipment research, design, manufacture, sales and service. In past 26 years, we go deeply mixing processing filed and related technologydevote to research different kinds of mixer, modify and perfect existing mixing system, and develop new-type mixer equipment.
Under working experience, we developed mixer processing machinery independently. With modern processing method, strict product management, high qualityand professional service team, Shengli is becoming the preferred brand. We will keep researching new technology, solving mixing problems, providing more suitable mixerpromoting upgrades, and creating maximum value for customers.
