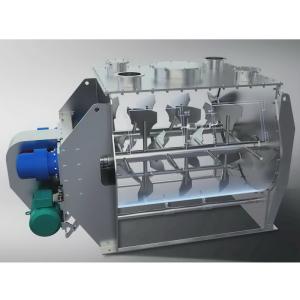

Drum Shape Carbon Steel Twin Shaft Paddle Mixer With High Capacity For Dry Mortar
official website:www.1985shengli.com
Introduction
The high efficient twin- shaft mixer adopts the paddle blade structure.The materials lose weight instantly at the critical parabolic rotate speed so that it can achieve best mixing effect,while the violent turnover speed shortens the mixing time in large extent.Thus the mixer is widely applied in dry mortar production lines.
specifications
| specification | WZL-0.3 | WZL-0.5 | WZL-1 | WZL-2 | WZL-3 | WZL-4 | WZL-6 | WZL-10 | WZL-15 |
| working capacity/m³ | 0.18 | 0.3 | 0.6 | 1.2 | 1.8 | 2.4 | 3.6 | 6 | 9 |
| working capacity(kg) | 200 | 300 | 600 | 1200 | 1800 | 2500 | 3600 | 6000 | 9000 |
| speed(RPM) | 60 | 60 | 53 | 43 | 43 | 35 | 35 | 29 | 22 |
| power | 5.5 | 7.5 | 11 | 22 | 30 | 37 | 44 | 60 | 90 |
| weight | 650 | 900 | 1300 | 2300 | 2800 | 3400 | 5000 | 6000 | 8500 |
| length | 1600 | 1800 | 2400 | 2800 | 3200 | 3400 | 3700 | 4000 | 4600 |
| width | 850 | 1000 | 1400 | 1700 | 1950 | 2000 | 2200 | 2600 | 3100 |
| height | 950 | 1100 | 1800 | 1950 | 2000 | 2000 | 2300 | 2600 | 2800 |
configurations
1.Flexible Material Selection
Material can be carbon steel, manganese steel, ss304, 316L and 321;
Surface treatment for stainless steel include sandblasting, wiredrawing, polishing, mirror polishing, all can be used in different parts of a mixer
2.Reliable driven unit
The four different driven combination launched by Shengli Co. can meet different requirements of two synchronous gear box, double output gear box ,double synchronous planetary gear box, and the combination of reducer and chain.
3.High efficiency mixing unit

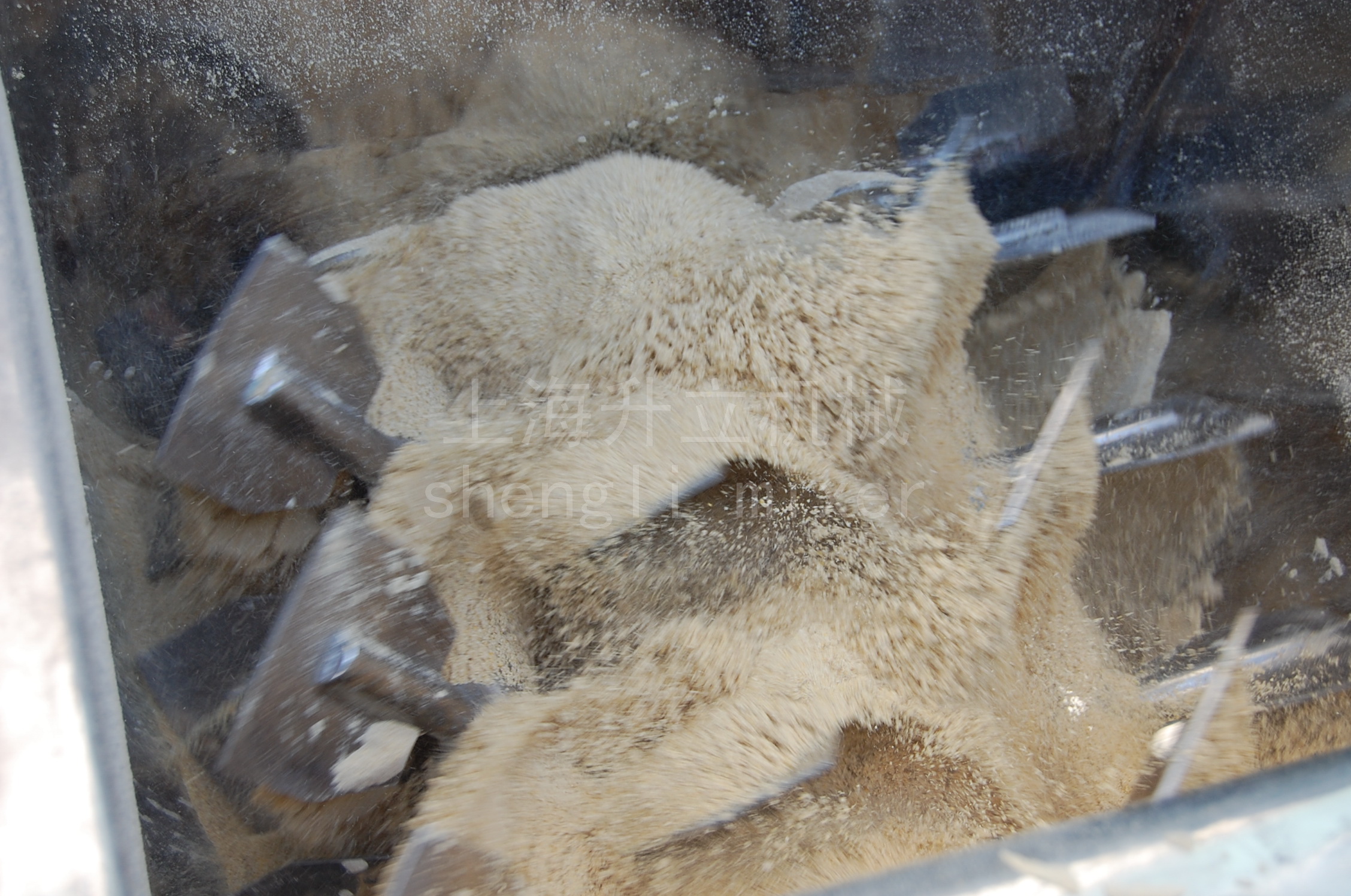

Double shaft paddle mixer can be also added high speed breaking bar inside the barrel, scattering material following its flow.
4.Excellent discharging unit
Standard valve for double shaft paddle mixer is twin pneumatic planar flap valves.

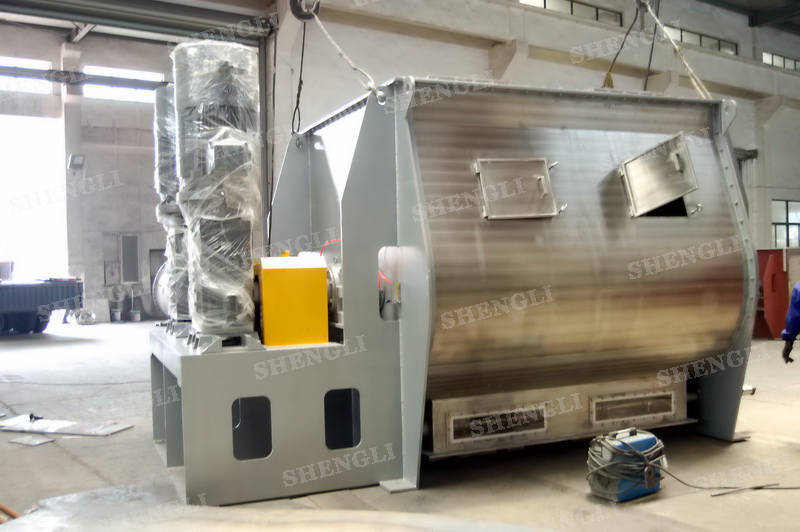

Detailed pictures
